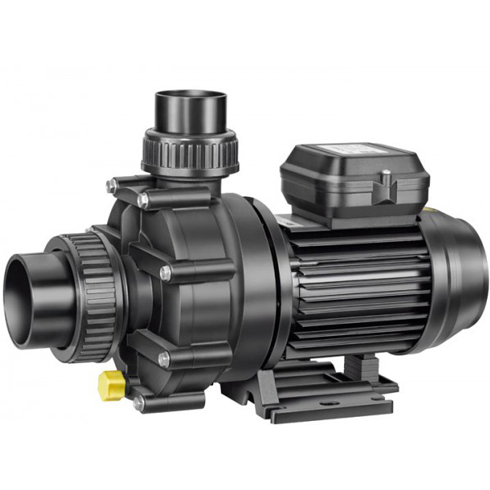

BADU® 46/10
Solid, medium-size jet pump with self-draining unit.
For bath tubs, whirlpools and spa facilities.
Field of application
The BADU 46 pumps empty remaining water automatically. Flow rate is from 5 m³/h to 20 m³/h at 8 m, the ideal pumps for jacuzzis and whirlpools.
Design
Monoblock-type pump. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation.
|
Pool equipment: |
Circulation pump |
|
Pool size in m³: |
1 - 30 |
|
Flow rate Q in m³/h: |
10 |
|
Total head H in m WS: |
8 |
|
Motor performance in kW (P2): |
0.45 |
|
Pool type: |
Whirlpool |
|
Pump casing: |
PP TV 40 |
|
Gland housing: |
PP TV 40 |
|
Mechanical seal: |
carbon / ceramic / NBR |
|
Screws: |
brass / stainless steel |
Motors
Special motors on request.
Miscellaneous
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i.e. 5 g/l.
For higher salt concentrations please contact the company SPECK Pumpen.
