BADU 44 Serisi Ürün Detayları

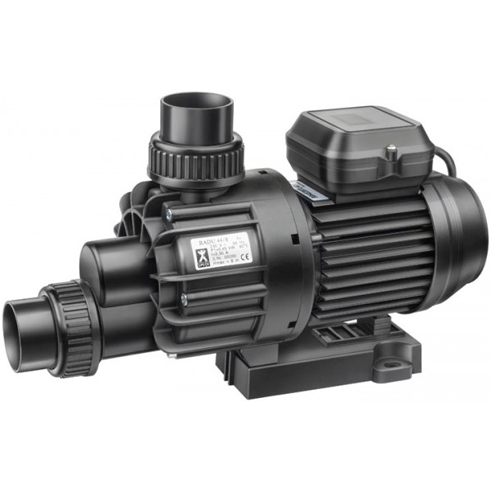

BADU® 44/12
Convenient monoblock-type pump with self-draining unit.
For larger bath tubs and whirlpools.

Field of application
The BADU 44 pump series with self-draining unit and a flow rate of up to 14 m³/h are the perfect jet pumps for bath tubs.

Design
Monoblock-type pump with integrated self-draining unit. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation.

Pool size in m³: 1 - 30
Flow rate Q in m³/h: 9
Total head H in m WS: 8
Motor performance in kW (P2): 0.45
Pump casing: PP
Gland housing: PP TV 40
Impeller: PA 66 GF 30 / PC
Mechanical seal: carbon / ceramic / NBR
Screws: Galvanised steel
Motors
Special motors on request.

Miscellaneous
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i.e. 5 g/l.

For higher salt concentrations please contact the company SPECK Pumpen.
