BADU 43 Serisi Ürün Detayları

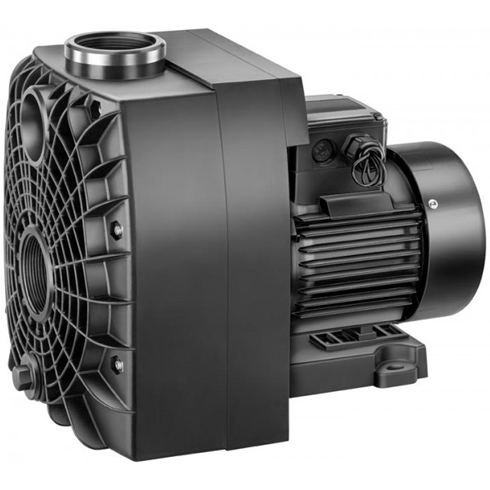

BADU® 43/15
Medium-size jet pump and additional pump.
For whirlpools and added support in water circuits.

Field of application
The BADU 43 pump series with its flow rate from 15 m³/h to 32 m³/h are the perfect jets and filter pumps for whirlpools.

Design
Monoblock-type pump with a closed bellow-type mechanical seal mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation.
Pool size in m³: 30 - 60
Flow rate Q in m³/h: 15
Total head H in m WS: 8
Motor performance in kW (P2): 0.75
Pump casing: PP TV 20 / GF 10
Diffuser: PP GF 30
Impeller: PP GF 30
Mechanical seal: carbon / ceramic / NBR
Screws: Galvanised steel
Intermediate housing: PP GF 30
Gland housing: PP GF 30
Motors
Special motors on request.

Miscellaneous
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i.e. 5 g/l.

For higher salt concentrations please contact the company SPECK Pumpen.
