V Serisi Vakum Pompalar Ürün Detayları
V

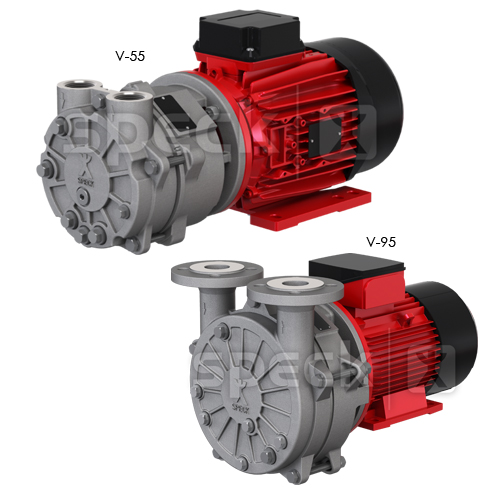

V Series – The All-rounders

  • Single-stage pumps with valve technology
  • Close-coupled versions with B35 close-to standard motors
  • Bracket version with B5 standard motors
  • Sound pressure level 65 – 72 db(A)

Media
dry and humidified gases
operational liquid max. 80 °C
absorbed gas max. 120 °C
Motor
0,4 – 11,0 KW, 1~Mot / 3~Mot
Material design
Stainless steel
Cast iron
Non-ferrous metal
Suction connection
G 3/8 – DN 65
Pressure connection
G 3/8 – DN 65
Sealing
Mechanical seal
Dimensions (WHD)

Medical engineering
  • Sterilization of surgical instruments, textiles and beds (steam- and gas sterilization)
Plastics industry
  • Extruder degasification
  • Vacuum calibration for the manufacturing of plastic profiles
Food industry / Pharmaceutical industry
  • Degasification of toothpaste, cremes, lotions, marzipan etc.
  • Degasification (oxygen deprivation) of meat and sausage products
  • Extraction of condensates for the production of sugar, sugar-based sweets, fruit juice/pulp, jam

Advantages
  • Tried-and-tested robust design
  • Low investment costs due to close coupled version
