ZY-3-MM Ürün Detayları
ZY-3-MM Ürün Detayları

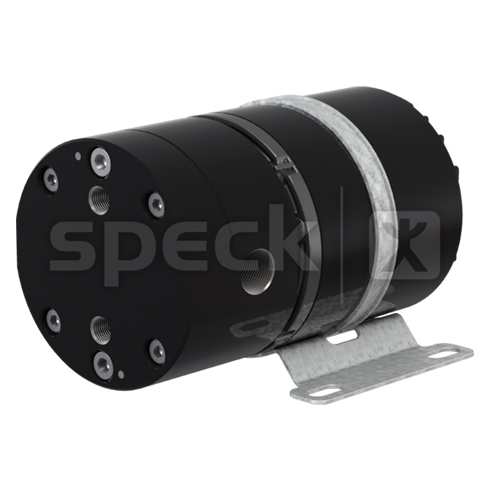

Close-coupled, hermetically sealed / canned motor
  • Parameters set by the manufacturer
  • Power consumption depending on load and speed
  • Within the displayed characteristic curve (see the graphic at the right), every operating point can be selected by parameterizing the drive accordingly.

Media
Oil / fuels -40 – +80 °C
Motor
24 V, max. 180 W, 1000 – 4000 1/min, EC
Material design
Spheroidal graphite cast iron
Suction connection
G 1/4
Pressure connection
G 1/4
Sealing
Separating can / Canned motor
Dimensions (WHD)
139 x 88 x 106 mm

Vehicles construction / Automotive
  • Delivery of fuel in construction machinery
  • Circulation of canola oil and bio diesel in trucks

Advantages
  • Compact design
  • Long service life due to sealless version and bearingless motor
