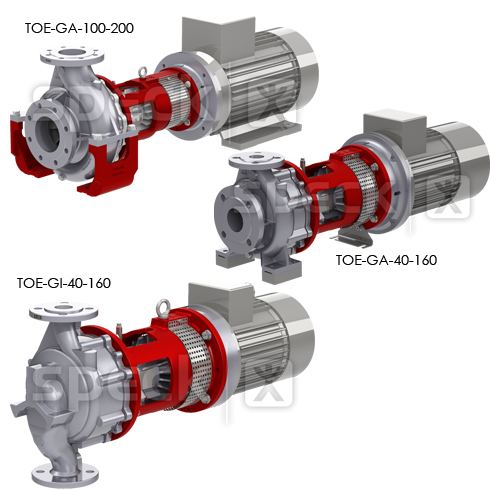

TOE-GN / GA / GI

Heat transfer pumps with mechanical seal

Media

Thermaloil 0 – 350 °C

Water max. 160 °C, 180 °C on request

Motor

-/-

Material design

Spheroidal graphite cast iron

Suction connection

DN 50 – DN 150

Pressure connection

DN 32 – DN 125

Sealing

Mechanical seal

Dimensions (WHD)

-/-

Heat transfer

Heating of baking ovens and large frying units
Tempering of tool moulds
Production of edible oil and dry masses
Heating of calanders, melting pots, agitators and mixing tanks in the leather, rubber and chemical industry and for the production of lacquers, colours and adhesives
Heating of tank, fuel oil and bitumen chambers on stationary and mobile platforms as well as in tank ships, in crude oil production und processing
Heating of colouring, coating, washing, pressing und ironing systems tn the textile industry
Heating of systems for bitumen production and processing, for drying applications and for the production of binders in the building industry
Heating of systems for the production of liquid crystals in the pharmaceutical industry
Heating of pipelines and treatment stations in the field of gas gathering
Heating of temperature controllers in the die cast industry

Advantages

Interchangeability of many parts at all series
Same hydraulics for TOE-GN / GA / MN / MA series
Same hydraulics for TOE-GI / MI series
Synthetic heat transfer media with low viscosities are delivered without any problems up to 350 °C
Hydrodynamically lubricated sleeve bearing in SiC
Low-wear impeller side chamber
