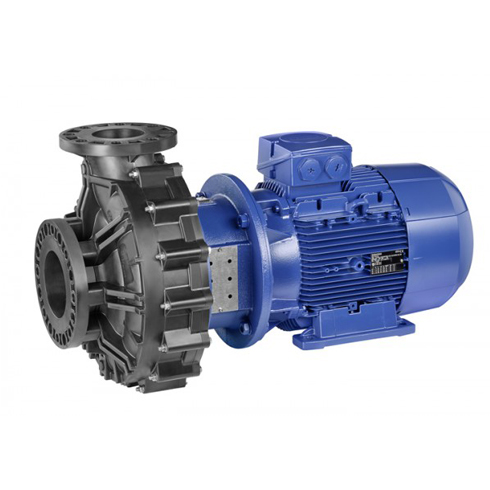

Corrosion-resistant – even with high brine concentrations. The new completely plastic concept of the Normblock Multi enhances the proven BADU technology taking it to a complete new level. The internal coating is unnecessary for the complete plastic pump. It is constantly robust, shock-resistant, impact resistant and unbreakable, maintenance-free and economical. Multifunctional modular system with various norm flanges. Flexible assembly of IE2, IE3 and permanent magnet motors from 5.5 to 11.0 kW. Easy to maintain plug-in shaft version.



Field of application

Swimming pool water circulation and filtration as well as the operation of swimming pool attractions in public swimming pools.



Design

Non-self-priming, single-stage volute casing pumps with performance classification and main dimensions in compliance with NF E 11-112 and DIN EN 733 (replacement for DIN 24255).



Flow rate Q in m³/h: max. 250

Total head H in m WS: max. 24

Motor performance in kW (P2): 5,5 - 11,0



Miscellaneous

The configuration of the pump suitable for your needs is carried out according to your own special requirements. Dimensional drawings and characteristics are therefore available from our customer services. Of course you can also request a copy of our configuration programme, BADU SELECT, free of charge. This contains all of the relevant documentation and remains at your disposal.
