BADU® FA 21-50/36 Anasayfa / Ürünler / Sirkülasyon Pompaları
Dökümanlar
BADU FA Serisi Ürün Detayları
BADU® FA 21-50/36

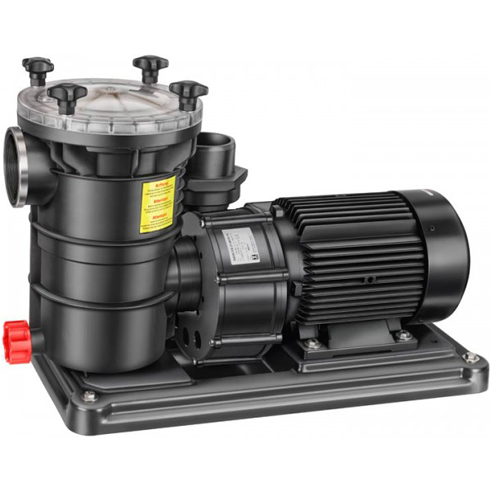

Solid monoblock-type pump with large strainer tank. For attractions and creative water ideas.

Field of application
Swimming pool water circulation in filter systems, flooded suction up to a flow rate of 56 m³/h.

Design
Monoblock-type pump on base plate with attached strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve.

Pool size in m³: 90 - 120
Flow rate Q in m³/h: 35
Total head H in m WS: 12
Motor performance in kW (P2): 2.20
Strainer basket mesh size in mm: approx. 3.40 x 3.20
Gland housing: PPE GF 30
Mechanical seal: carbon / ceramic / NBR
Screws: Stainless steel 1.4301
Impeller nut: PP GFTV 30
Motor shaft: Stainless steel 1.4057
Wear ring: Stainless steel 1.4301

Motors
Single phase motors and special motors on request.

Miscellaneous
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i.e. 5 g/l.

For higher salt concentrations please contact the company Speck Pumpen.
