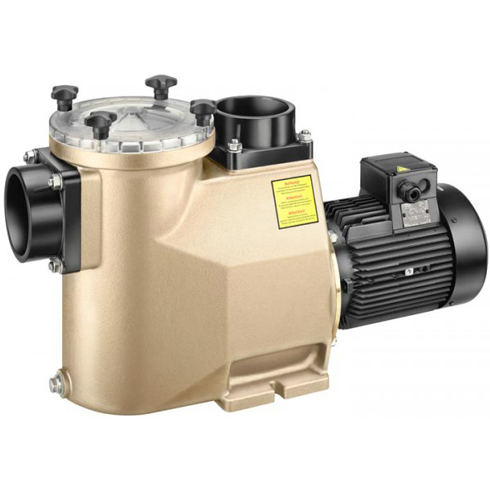

BADU® 93/110
The self-priming circulation pumps with large bronze housing in the BADU 93 range are the popular choice for reliable and constant use in hotels, attraction pools, treatment and massage pools as well as in public swimming pools. Due to the compact construction and modular design the pumps in this range can be installed where space saving is necessary. The self-priming function allows a trouble-free filter operation as well as installation above or below the water level (up to 3 m).
Field of application
Swimming pool water circulation through a filter system. The pump can be installed max. 3 m above or below water level.
Design
Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a shaft protector sleeve.
|
Pool equipment: |
Circulation pump |
|
Pool size in m³: |
400 - 500 |
|
Filter size in mm: |
larger than 1100 |
|
Flow rate Q in m³/h: |
105 |
|
Total head H in m WS: |
10 |
|
Motor performance in kW (P2): |
5.50 |
|
Strainer capacity in l: |
approx.8 |
|
Strainer basket mesh size in mm: |
approx. 3.40 x 3.20 |
|
Pool type: |
Indoor Pool |
|
Installation: |
Built-in pool |
|
Class: |
Premium |
|
Pump casing: |
G-Cu Sn 10 |
|
Diffuser: |
G-Cu Sn 10 |
|
Impeller: |
PPE GF 30 / PP GF 30 |
|
Strainer basket: |
PP |
|
Mechanical seal: |
carbon / ceramic / NBR |
|
Screws: |
stainless steel |
|
Impeller nut: |
PP GF 30 |
|
Gland housing: |
G-Cu Sn 10 |
|
Glue socket: |
ABS |
|
Knob: |
PA 6 GV |
|
Shaft: |
1.4057 |
Motors
Special motors on request.
Miscellaneous
Also available in special design.
The pumps, as described, can be used for pool water with a salt concentration of up to 0.5%, i.e. 5 g/l.
For higher salt concentrations please contact the company Speck Pumpen.
