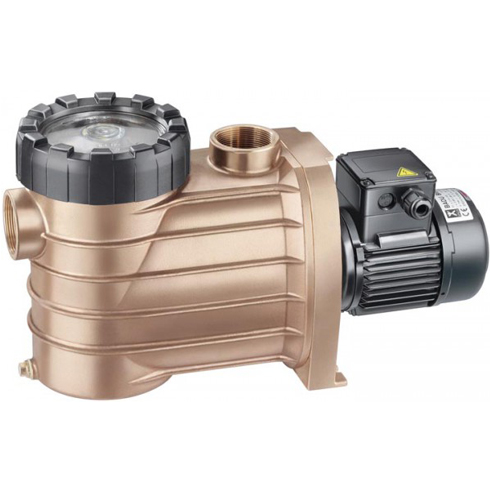

BADU® Bronze 11
BADU Bronze pumps are made exclusively from high quality bronze - without zinc or lead additives. The durable pump, made for large swimming pools, offers an especially high resistance to corrosion and great operational safety. The low noise design adds to the noble character of the BADU Bronze. A practical opening aid for the transparent lid is included in delivery.
Field of application
Swimming pool water circulation through a filter system. The pump can be installed max. 3 m above or below water level.
Design
Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve. Solid bronze casing, quiet operation and high stability.
|
Pool equipment: |
Circulation pump |
|
Pool size in m³: |
30 - 60 |
|
Filter size in mm: |
500 - 610 |
|
Flow rate Q in m³/h: |
11 |
|
Total head H in m WS: |
8 |
|
Motor performance in kW (P2): |
0.45 |
|
Strainer capacity in l: |
approx. 4.5 |
|
Strainer basket mesh size in mm: |
approx. 3.2 x 2.6 |
|
Pool type: |
Outdoor Pool,Indoor Pool,Natural pool/swimming pond |
|
Installation: |
Built-in pool |
|
Class: |
Premium |
|
Pump casing: |
G-Cu Sn 10 |
|
Diffuser: |
PP GF 30 |
|
Impeller: |
PP GF 30 |
|
Strainer basket: |
PP |
|
Mechanical seal: |
carbon / ceramic / NBR |
|
Screws: |
stainless steel 1.4301 |
|
Guarantee: |
5 year premium guarantee |
|
Gland housing: |
G-Cu Sn 10 |
Motors
Special motors on request.
Miscellaneous
Delivery time for larger quantities on request.
The pumps, as described, can be used for pool water with a salt concentration of up to 0.5%, i.e. 5 g/l.
For higher salt concentrations please contact the company Speck Pumpen.
