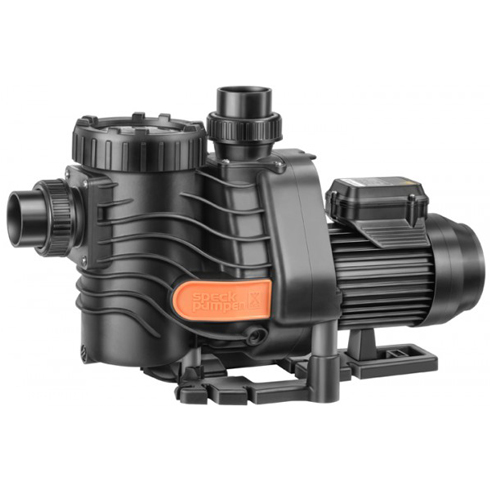

BADU® EasyFit 12

With the BADU EasyFit the often time-consuming task of installing a new circulation pump into an existing filter unit is a thing of the past. The BADU EasyFit fits almost every unit, regardless of the manufacturer: 6 adaptable connection sets provide inlet and outlet connections which are compatible with varying pipe dimensions and connection options. Variable pump feet ensure that the pump can take over the exact position of the old pump.

Pool equipment: Circulation pump
Pool size in m³: 30 - 60
Filter size in mm: 500-610
Flow rate Q in m³/h: 12
Total head H in m WS: 8
Motor performance in kW (P2): 0.45
Pool type: Outdoor Pool,Indoor Pool
Installation: Above ground pool,Built-in pool
Pump casing: PP GF 30
Diffuser: PP TV 40 / PP GF 30
Impeller: PA 66 GF 30 + PC / PP GF 30
Strainer basket: PP
Mechanical seal: carbon / ceramic / NBR
Screws: stainless steel
Intermediate housing: PP TV 30
Gland housing: PP TV 40
Lid: PC, transparent / PP GF 30
Field of application
Swimming pool water circulation through a filter system. The pump can be installed max. 3 m above or below water level.

Design
Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation.
