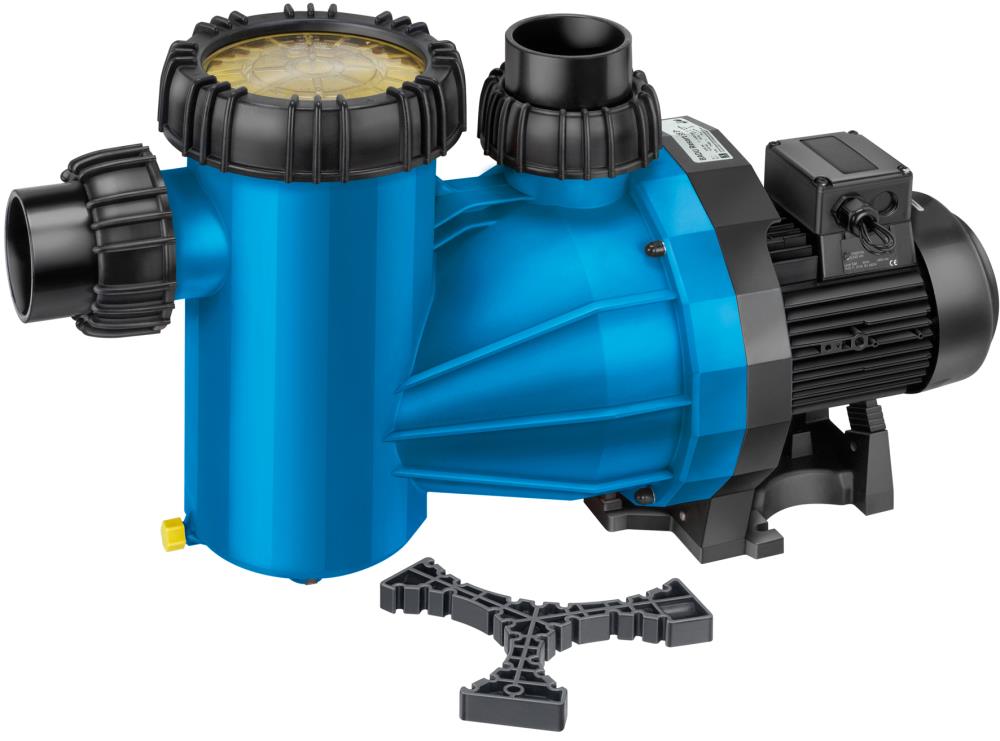

BADU® Resort 110-PM
Successful circulation pump with PM motor.

Field of application
Swimming pool water circulation through a filter system. The pump can be installed max. 3 m above or below the water level.

Design
Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation.



Pool equipment: Circulation pump
Pool size in m³: 400 - 500
Filter size in mm: larger than 1100
Flow rate Q in m³/h: 105
Total head H in m WS: 10
Motor performance in kW (P2): 5.50
Strainer capacity in l: approx.10
Strainer basket mesh size in mm: approx. 3.4 x 3.2
Pool type: Outdoor Pool,Indoor Pool,Natural pool/swimming pond
Installation: Built-in pool
Class: GREEN/td>
Pump casing: PP GF 30
Diffuser: PP GF 30
Impeller: PPE GF 30 / PP GF 30
Strainer basket: PP
Mechanical seal: carbon / ceramic / NBR
Screws: stainless steel
Intermediate housing: PP TV 40
Gland housing: PP TV 40
Glue socket: ABS
Impeller nut: PP GF 30

Miscellaneous
Opening device is included in delivery.

The pumps, as described, can be used for pool water with a salt concentration of up to 0.5%, i.e. 5 g/l.

For higher salt concentrations please contact the company SPECK Pumpen.
