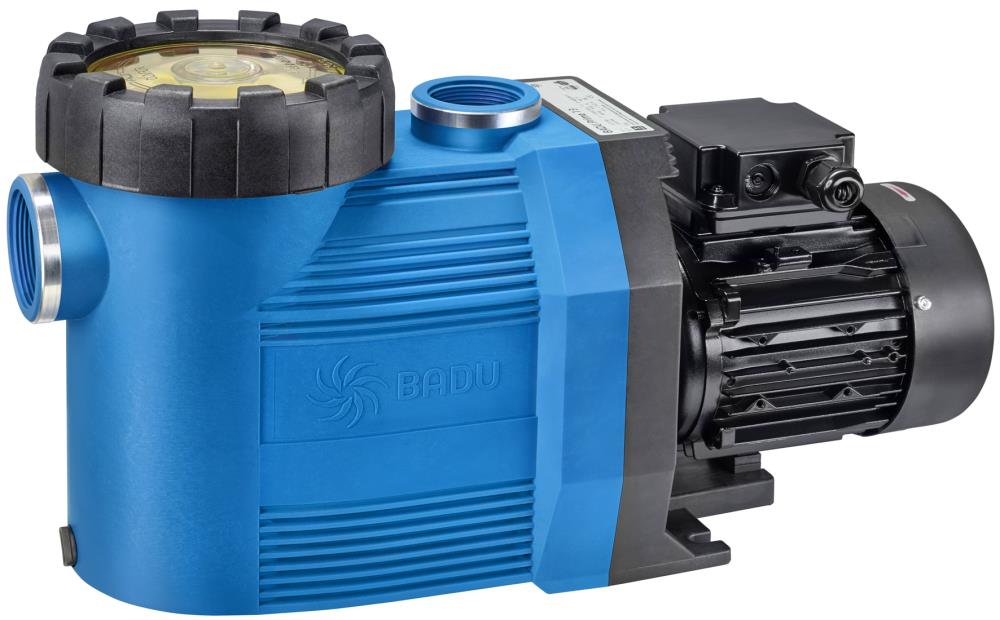

BADU® Prime 11
No other pump within the BADU range has proven to be as successful as the BADU Prime. It is designed for larger filter units and thanks to the fibre glass reinforced material it meets all requirements. The low noise construction and innovative optimisation complete the BADU Prime. A practical opening aid for the transparent lid is included in delivery.
Field of application
Swimming pool water circulation through a filter system. The pump can be installed max. 3 m above or below water level.
Design
Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation.
Motors
Special motors on request.
|
Pool equipment: |
Circulation pump |
|
Pool size in m³: |
30 - 120 |
|
Filter size in mm: |
500 - 610 |
|
Flow rate Q in m³/h: |
11 |
|
Total head H in m WS: |
8 |
|
Motor performance in kW (P2): |
0.45 |
|
Strainer capacity in l: |
approx.3 |
|
Strainer basket mesh size in mm: |
approx. 3.2 x 2.6 |
|
Pool type: |
Indoor Pool,Outdoor pool,Natural pool/swimming pond |
|
Class: |
Premium |
|
Pump casing: |
PP GF 30 |
|
Gland housing: |
PP GF 30 |
|
Impeller: |
PP GF 30 |
|
Strainer basket: |
PP |
|
Mechanical seal: |
carbon / ceramic / NBR |
|
Screws: |
stainless steel 1.4301 |
|
Intermediate housing: |
PP TV 40 |
|
Gland housing: |
PP TV 40 |
|
Guarantee: |
5 year premium guarantee |
Miscellaneous
The pumps, as described, can be used for pool water with a salt concentration of up to 0.5%, i.e. 5 g/l.
For higher salt concentrations please contact the company SPECK Pumpen
