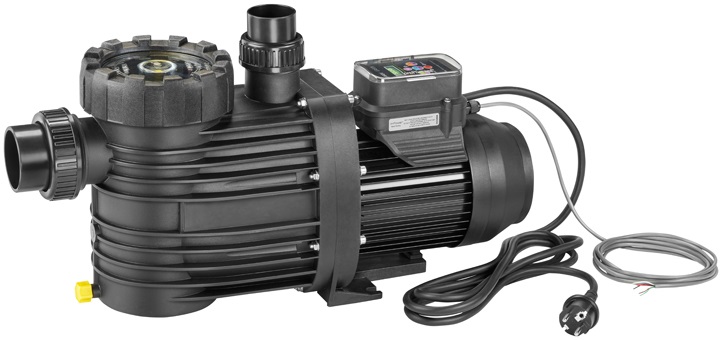

BADU® Eco Touch-Pro II
As a revolutionary innovation, with patented permanent magnet motor, the BADU Eco Touch-Pro sets new standards in energy consumption, operating costs and water quality. The three variable motor speeds can be programmed individually. They can be set from 1000 to 2830 rpm in steps of 50.The values 2000, 2400 and 2830 rpm are pre-set.
Field of application
Swimming pool water circulation through a filter system. The pump can be installed max. 3 m above or below water level.
Design
Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation.
|
Pool equipment: |
Circulation pump |
|
Pool size in m³: |
30 - 960 |
|
Filter size in mm: |
400 - 500 |
|
Flow rate Q in m³/h: |
max. 25 |
|
Total head H in m WS: |
max. 15 |
|
Motor performance in kW (P2): |
max. 0.75 |
|
Strainer capacity in l: |
approx.3 |
|
Strainer basket mesh size in mm: |
approx. 3.2 x 2.6 |
|
Pool type: |
Indoor Pool,Outdoor pool,Natural pool/swimming pond |
|
Installation: |
Built-in pool, Above ground pool |
|
Class: |
Green |
|
Pump casing: |
PP TV 20 |
|
Gland housing: |
PP TV 40 |
|
Impeller: |
PA 6 GF 15 / PC |
|
Strainer basket: |
PP |
|
Mechanical seal: |
carbon / ceramic / NBR |
|
Screws: |
stainless steel, galvanized |
|
Intermediate housing: |
PP TV 40 |
|
Gland housing: |
PP TV 40 |
Miscellaneous
The pumps, as described, can be used for pool water with a salt concentration of up to 0.5%, i.e. 5 g/l.
For higher salt concentrations please contact the company SPECK Pumpen.
