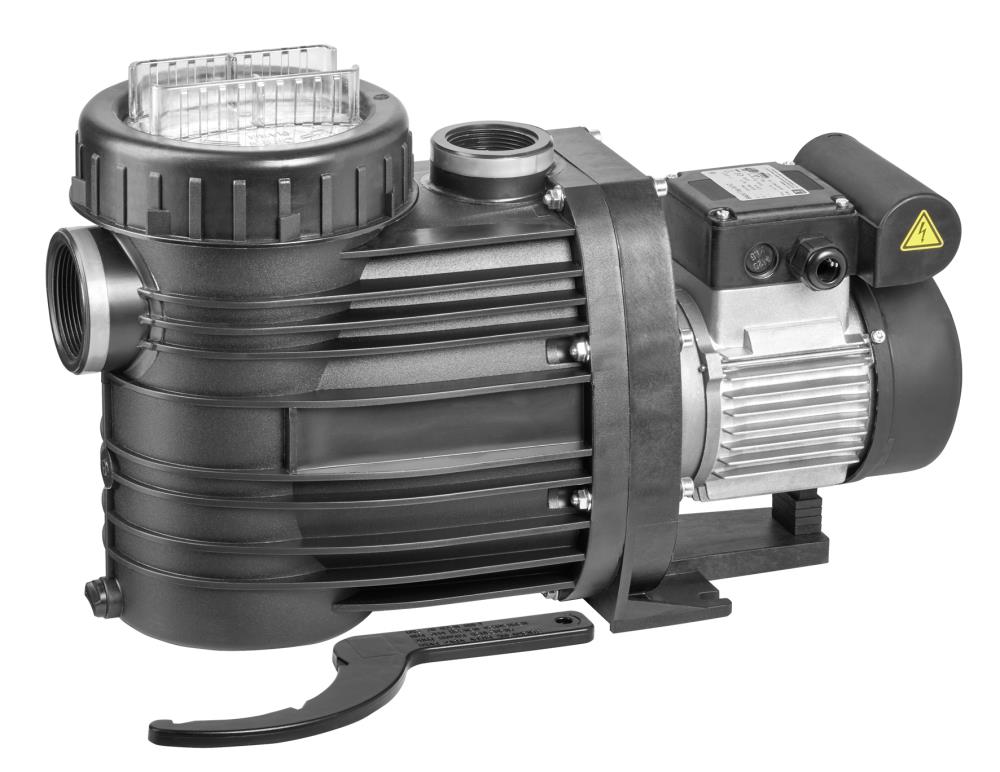

BADU® Top II
> Bettar successor model
A classic in the BADU series, this pump is especially designed for medium-size, above ground pools, partially embedded pools and smaller swimming ponds. Thanks to the large pumping capacity, an automatic pool cleaner can also be attached.
Field of application
Swimming pool water circulation through a filter system. The pump can be installed max. 3 m above or below water level.
Design
Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation.
Motors
Special motors on request.
|
Pool equipment: |
Circulation pump |
|
Pool size in m³: |
30 - 60 |
|
Filter size in mm: |
500 - 610 |
|
Flow rate Q in m³/h: |
12 |
|
Total head H in m WS: |
8 |
|
Motor performance in kW (P2): |
0.45 |
|
Strainer capacity in l: |
approx. 0.3 |
|
Strainer basket mesh size in mm: |
approx. 3.2 x 2.6 |
|
Pool type: |
Indoor Pool,Outdoor pool |
|
Installation: |
Built-in pool, Above ground pool |
|
Class: |
Middle Class |
|
Pump casing: |
PP TV 20 |
|
Gland housing: |
PP TV 40 |
|
Impeller: |
PA 66 GF 30 / PC |
|
Strainer basket: |
PP |
|
Mechanical seal: |
carbon / ceramic / NBR |
|
Screws: |
Galvanised steel |
|
Intermediate housing: |
PP TV 40 |
|
Gland housing: |
PP TV 40 |
Miscellaneous
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.
For higher salt concentrations please contact the company Speck Pumpen.
