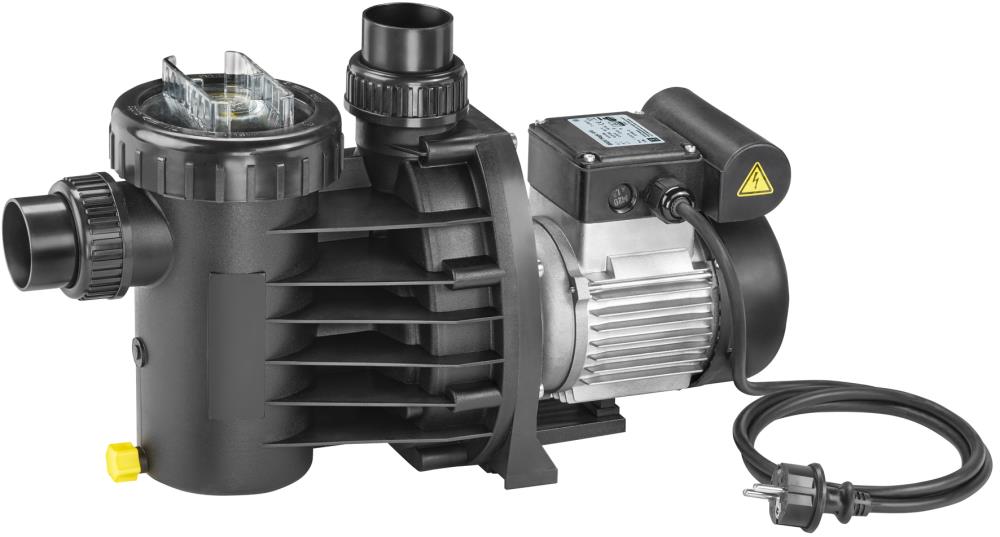

BADU® Magic II
The introductory model for small to medium-size filter units offers an economical and reliable solution for above ground pools. Tried and tested, this pump reaches a high rate of efficiency during constant operation.
Field of application
Swimming pool water circulation through a filter system. The pump can be installed max. 2 m above or max. 3 m below water level.
Design
Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation.
Motors
Special motors on request.
|
Pool equipment: |
Circulation pump |
|
Pool size in m³: |
30 - 60 |
|
Filter size in mm: |
500 - 610 |
|
Flow rate Q in m³/h: |
11 |
|
Total head H in m WS: |
8 |
|
Motor performance in kW (P2): |
0.45 |
|
Strainer capacity in l: |
approx. 0.5 |
|
Strainer basket mesh size in mm: |
approx. 2.8 x 2.8 |
|
Pool type: |
Outdoor pool |
|
Installation: |
Built-in pool, Above ground pool |
|
Class: |
Starter |
|
Pump casing: |
PP |
|
Gland housing: |
PP TV 40 |
|
Impeller: |
PA 66 GF 30 / PC |
|
Strainer basket: |
PP |
|
Mechanical seal: |
carbon / ceramic / NBR |
|
Screws: |
stainless steel 1.4301 |
Miscellaneous
The pumps, as described, can be used for pool water with a salt concentration of up to 0.5%, i.e. 5 g/l.
For higher salt concentrations please contact the company SPECK Pumpen.
