BluVacD

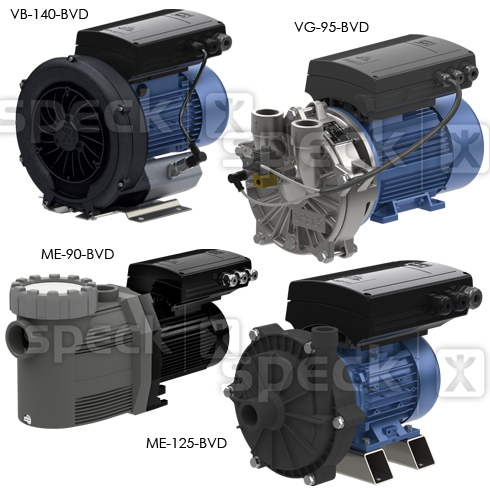

BluVacD – Decentralized vacuum units for plant-side separators
  • Designed for the parallel extraction of air and water from a plant-side separator (e.g. a vacuum tank) in the calibration table
  • Energy-saving vacuum generation due to speed-controlled vacuum pump or speed-controlled side channel compressor
  • Energy-saving water discharge due to speed-controlled discharge pump from the ME-...-BVD series
Media
Gases with water shares / water
Dry and humidified gases / water
Motor
1,5 – 5,5 kW (20 – 60 Hz), 3~Mot
Material design
Stainless steel
Plastics
Cast iron
Non-ferrous metal
Suction connection
VB: G 1 1/2 – 2
VG: G1 – DN 50
ME-125: G 1
Pressure connection
VB: G 1 1/2 – 2
VG: G1 – DN 50
ME-125: G 3/4
Sealing
Mechanical seal
Dimensions (WHD)
-/-

Further applications
  • General controlled vacuum generation
Plastics industry
  • Vacuum calibration for the manufacturing of plastic profiles
  • Production of polystyrene parts (EPP / EPS)
Chemical industry
  • Distillation / separation of liquids
  • Recovery of condensates (solvents)
Advantages
  • Highly efficient by generating a demand-based vacuum
  • Decentralised systems, smart control, easy handling
  • As easy to install as existing vacuum pumps
